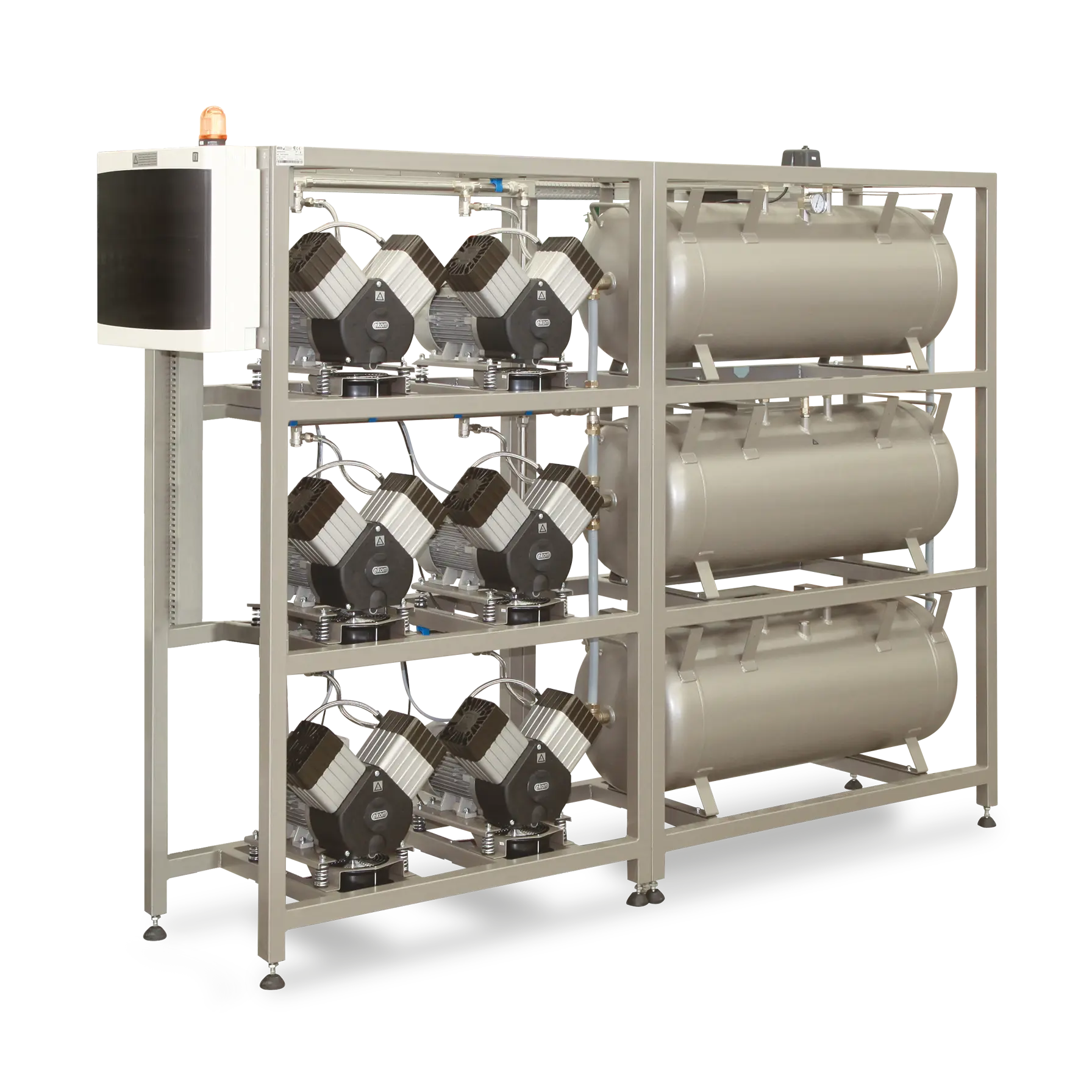

Compact compressor station serving as a source of compressed air for small and medium-sized distribution systems. Individual compressor pumps work independently, thus ensure continuous operation even during routine maintenance of any unit. For demanding dental equipment, a wide range of optional air treatment accessories is available, including different levels of drying and filtration.
DK50 6x2VT/M (AD)
without noise reduction cabinet, with dryer| DK50 6x2VT/M (AD) | |
|---|---|
|
Dryer |
✔ (AD) |
|
Noise reduction cabinet |
✘ |
|
Nominal voltage / frequency |
3x400 V / 50 Hz |
|
Motor performance |
6x1.2 kW |
|
Air tank capacity |
3x110 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
620 l.min-1 / 6 bar (at PDP -20 °C) 580 l.min-1 / 6 bar (at PDP -40 °C) |
|
Compressor efficiency (working pressure 8 - 10 bar) |
470 l.min-1 / 8 bar (at PDP -20 °C) 450 l.min-1 / 8 bar (at PDP -40 °C) |
|
Duty cycle |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
-20 °C at 7 bar -20 °C at 9 bar |
|
Noise level |
≤ 74 dB (A) |
|
Weight |
450 kg |
|
Weight AD |
58 kg |
|
Dimensions |
2780 x 1740 x 540 mm |
|
Dimensions AD |
530 x 350 x 1310 mm |
