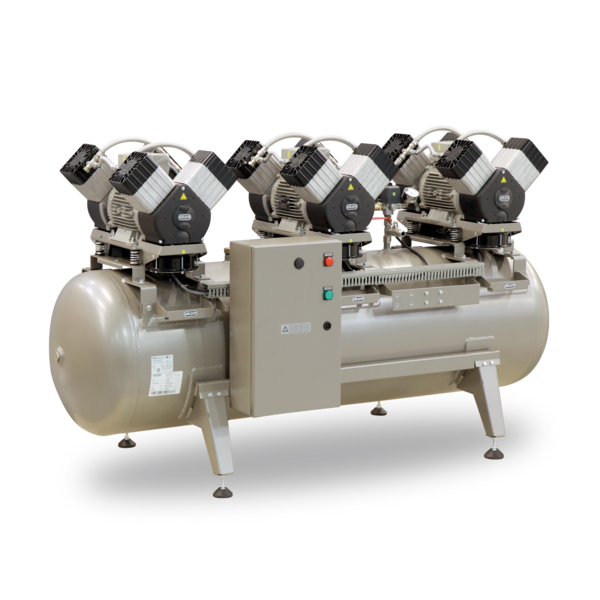

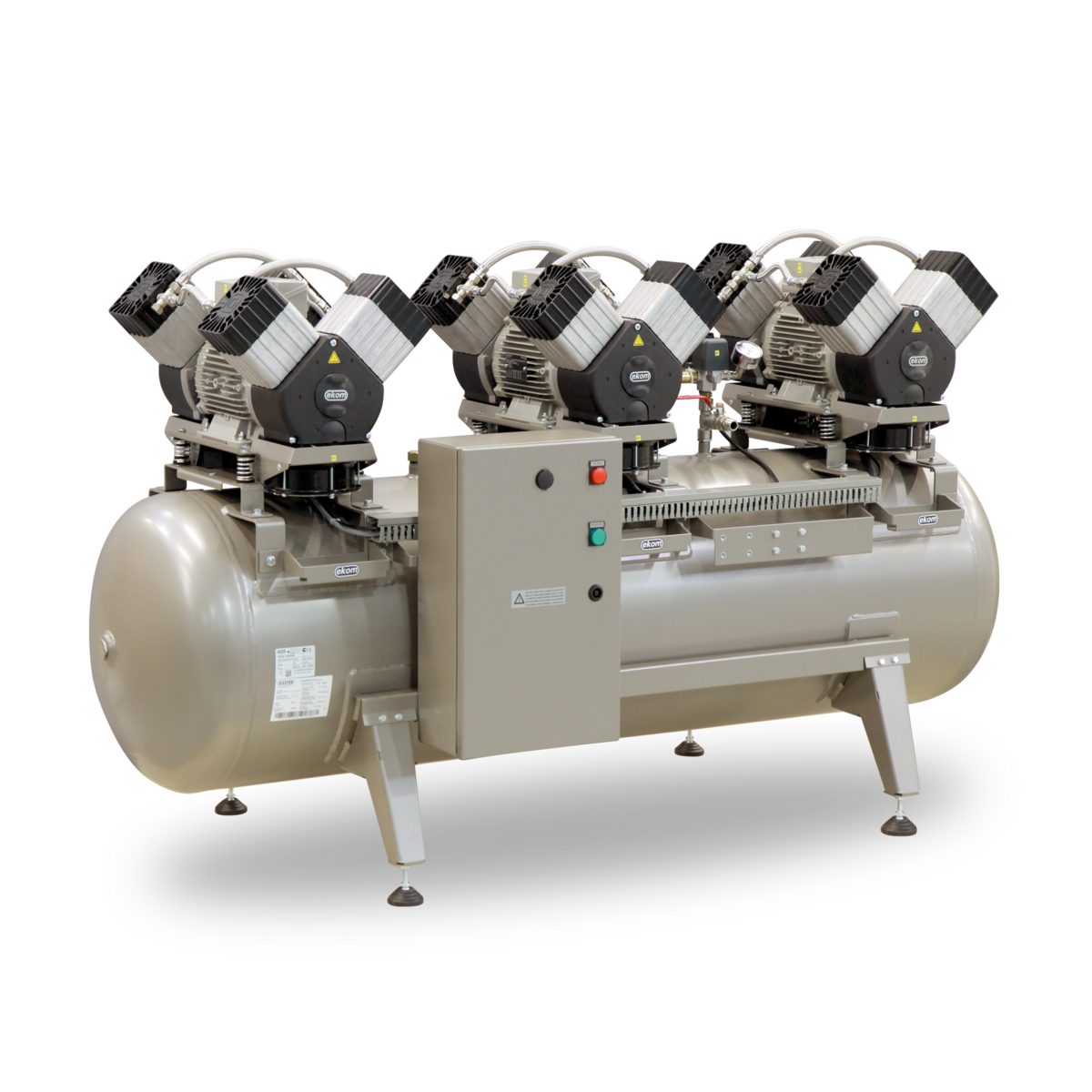

Compact compressor with three four-cylinder compressor pumps placed on a 290 l air tank with a wide range of air treatment accessories. Different degrees of drying and filtration are available depending on customer's requirements. These options make it a versatile source of compressed air for a variety of applications.
DK50 3x4VR/M
without noise reduction cabinet, with dryer- With adsorption dryer
- With refrigerated dryer
| DK50 3x4VR/M | |
|---|---|
|
Dryer |
✔ (AD) |
|
Noise reduction cabinet |
✘ |
|
Nominal voltage / frequency |
3x400 V / 50 Hz |
|
Motor performance |
3x2.2 kW |
|
Air tank capacity |
290 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
680 l.min-1 / 6 bar (at PDP -20 °C) 640 l.min-1 / 6 bar (at PDP -40 °C) |
|
Compressor efficiency (working pressure 8 - 10 bar) |
520 l.min-1 / 8 bar (at PDP -20 °C) 500 l.min-1 / 8 bar (at PDP -40 °C) |
|
Duty cycle |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
-40 °C at 7 bar -40 °C at 9 bar |
|
Noise level |
≤ 80 dB (A) |
|
Weight |
279 kg |
|
Weight AD |
46 kg |
|
Dimensions |
1780 x 800 x 1025 mm |
|
Dimensions AD |
530 x 350 x 965 mm |
| DK50 3x4VR/M | |
|---|---|
|
Dryer |
✔ (RD) |
|
Noise reduction cabinet |
✘ |
|
Number of dental units |
12+ |
|
Nominal voltage / frequency |
3x400 V / 50 Hz |
|
Motor performance |
3x2.2 kW |
|
Air tank capacity |
290 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
780 l.min-1 / 6 bar |
|
Compressor efficiency (working pressure 8 - 10 bar) |
600 l.min-1 / 8 bar |
|
Duty cycle |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
+3 °C at 7 bar +3 °C at 9 bar |
|
Noise level |
≤ 80 dB (A) |
|
Weight |
279 kg |
|
Weight RD (for Nx4VR) |
58 kg |
|
Dimensions |
1780 x 800 x 1025 mm |
|
Dimensions RD (for Nx4VR) |
760 x 550 x 1040 mm |
